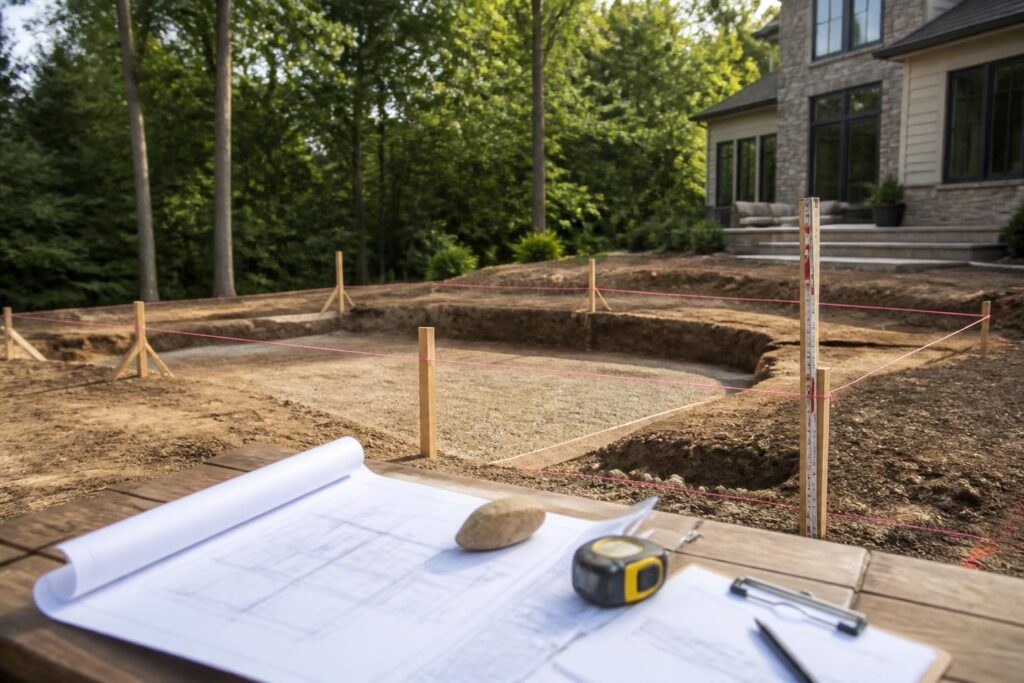

Pool construction survey stake documentation can preserve details that become difficult to confirm after excavation, grading, or landscaping begins. Stakes, hubs, nails, paint marks, and other field references may show where the pool, deck, equipment, or finished grades belong. They help during construction, but they do not create permanent records by themselves.

Before anyone removes or disturbs those markers, ask what the crew set, who established it, which drawing controls it, and how the team will preserve the information. North Carolina projects can involve different local requirements, property conditions, slopes, easements, utilities, septic systems, and flood risks. Treat this article as a documentation guide, not a survey, engineering opinion, or code-compliance determination.

Why survey stake records matter during pool construction

A layout stakeout transfers design information onto the property. The field crew may mark pool corners, curves, excavation limits, deck edges, retaining features, equipment locations, reference lines, or elevation points. Some marks identify a precise point. Others provide a line, offset, or visual guide for construction.

Once work starts, crews can bury, move, damage, or cover those references with soil and concrete. A photograph alone may not explain whether a mark represented the pool shell, an excavation limit, a deck edge, or a temporary offset. Useful records connect each field mark to a plan, description, measurement, or elevation reference.

The goal is not to create a substitute boundary survey or as-built survey. Instead, you want a clear project record that helps the homeowner, contractor, surveyor, engineer, and later service professionals understand what the layout team intended to establish. Good pool construction survey stake documentation preserves that connection while the evidence remains visible.

For background on property lines, easements, and other boundary questions, review North Carolina residential pool boundary survey questions. If the pool is close to a boundary, compare the field layout with the approved plans and obtain qualified confirmation before excavation.

Request a layout-point record before stakes are removed

Start with a list of each important point or line established in the yard. The record should use the project’s actual drawing names and revision dates. Ask the contractor or survey professional which marks are temporary and which references will remain available.

• Pool corners, tangent points, radius points, and centerlines.
• Interior features such as steps, benches, ledges, spas, and deep-end transitions.
• Deck edges, patio limits, drains, walls, fences, and other related construction lines.
• Equipment pad, heater, utility trench, and service-access reference points.
• Excavation offsets where the physical pool edge differs from the digging limit.
• Control points or benchmarks that establish horizontal or vertical locations.

Ask whether the crew placed the points from an approved plan, a revised plan, a survey, or field direction. Record the answer. If a design changed after stakeout, request a new marked-up plan or written revision rather than relying on verbal instructions. Add that record to your pool construction survey stake documentation package.

Questions to ask about each marker

• What does this stake, nail, hub, flag, or paint mark represent?
• Is it on the final construction line, or is it an offset?
• What drawing and revision date control this location?
• What point, line, or benchmark provided the reference?
• How can the crew re-establish the location if the marker moves?
• Who should confirm the position before excavation or concrete work?

Photograph each marker from several directions. Include a wide view showing nearby structures and a close view showing labels or paint. Add a date, location, and short description to every image. Do not move a stake to make a photograph easier.

Preserve elevation and vertical-control information

Horizontal layout shows where features go. Elevation information shows how high or low they sit. A project may use an existing benchmark, a temporary benchmark, a nail, a hub, a foundation reference, or another agreed point. The record should identify the reference and the units used.

Request the planned elevations for the pool perimeter, deck, coping, drains, equipment pad, yard transitions, and other features that affect water movement or access. The correct information depends on the design and site. A homeowner should not assume that a stake marked with paint communicates a complete grading plan.

Ask for a simple elevation table or annotated drawing. It might identify a point label, planned elevation, reference datum, feature description, and responsible professional. If the project includes walls, slopes, drainage structures, or complex grading, ask the contractor whether a surveyor or engineer must verify the information.

Keep the following with the project records:

• Benchmark or control-point description.
• Plan datum or reference system, if provided.
• Planned elevations for key pool and deck features.
• Elevation notes for transitions to the house, yard, steps, or drainage areas.
• Photos of benchmark locations before nearby work changes the site.
• Written explanations for any approved elevation adjustment.

Elevation records do not replace professional grading or drainage advice. If you see standing water, an unexpected step, a steep transition, or a conflict with the house, pause the affected decision and ask the appropriate qualified professional to review it.

Connect the layout to property and site references

Pool stakes should relate to the property, not only to isolated marks in the lawn. Ask what existing references guided the layout. These may include surveyed boundary monuments, house corners, an existing deck, a recorded easement, a septic feature, a well, a driveway, or a permanent structure.

Request a copy of the applicable survey or site drawing used for layout. Mark the reference features on your records without treating visible fences, hedges, or paving as proof of a legal boundary. A property line or easement question belongs with a qualified surveyor or the relevant local authority.

For excavation planning, utility records and notifications also matter. North Carolina 811 provides the state’s official utility-notification resource at North Carolina 811. Utility marking and survey stakeout serve different purposes. A utility paint mark does not establish a property line, and a pool layout stake does not identify every underground service.

Include notes about site conditions that could affect interpretation:

• Which visible features guided the layout.
• Note any boundary, easement, septic area, or well location that needs professional confirmation.
• Record any design assumption about the house, deck, wall, or driveway location.
• Identify flood, drainage, or land-disturbance questions that require separate review.
• Which references may be temporary or vulnerable during excavation.

These property-reference notes form an important part of pool construction survey stake documentation. They show the relationship between the marks and the site without claiming that the records establish legal boundaries.

Document approved revisions before the field layout changes

Survey stakes often expose a practical conflict. A planned deck may meet a tree, an equipment location may affect access, or a pool edge may appear different from the homeowner’s expectations. These situations call for a controlled revision process.

Do not approve a field change only by pointing at a stake or sending an unclear text message. Ask for the revised drawing, a written description, and confirmation of who approved the change. The record should show what changed, why it changed, and which earlier document it replaces.

A useful revision log includes:

• Revision number or date.
• Feature affected.
• Old location or detail.
• New location or detail.
• Reason for the change.
• Effect on elevations, drainage, access, equipment, barriers, or finishes.
• Any price, schedule, permit, or professional-review effect stated in writing.
• Names or roles of the people who approved the revision.

Use a written change process that matches your contract. The NC Licensing Board home-improvement contract guidance offers official consumer information about contracts, references, payment, and changes. It does not decide how your particular pool layout should be surveyed or built.

Two related records can help. The guide to documenting pool construction covers broader project photos and notes. A separate record for rain and site-condition changes can explain why a layout was protected, reset, or reviewed after weather.

Create a stakeout handoff package

Before markers disappear, assemble one digital folder and one backup. Name files consistently. Include the project address, date, document type, and revision number. Keep original photographs and do not rely only on compressed messaging-app copies.

Your package may include:

• Approved plan set and all superseded versions.
• Survey or site reference documents supplied for the project.
• Stakeout sketch, point list, or field notes.
• Photos of stakes, hubs, nails, paint, benchmarks, and nearby references.
• Elevation table or grading notes.
• Revision log and signed or acknowledged change documents.
• Written notes about missing, moved, or reset markers.
• Names and roles of the survey, design, and construction contacts.

Use a simple photo index. For example, “Photo 014: northeast pool corner offset, looking toward house, taken before excavation.” A description like this is more useful than a camera filename months later. This indexed handoff is a practical final step in pool construction survey stake documentation.

When a stake is missing or moved

Stop and report the issue before relying on a nearby mark. Ask who will re-establish the point and whether the replacement requires a surveyor or other qualified professional. Photograph the surrounding area, note when the problem was found, and save the response.

Do not estimate a corner from memory, a fence, or a photograph. A replacement mark may need to follow the current approved revision, not the original stakeout.

Review the records at each project decision

Stake documentation is most valuable when the team uses it before work covers the evidence. Review the package before excavation, after any layout change, before deck or wall work, and before final grading. Compare the field conditions with the current plan, not an older printout.

Keep a short decision checklist:

• Is the current plan clearly identified?
• Do the visible markers match that plan?
• Are the reference points and elevations explained?
• Have property, easement, septic, well, utility, and drainage questions gone to the right professional?
• Are approved revisions recorded before construction proceeds?
• Have photos and notes been backed up?

For permit approvals and inspection paperwork, keep a separate file alongside the stakeout records. Local inspections departments may require project-specific documents, and requirements can change with jurisdiction, adopted code, property conditions, and scope. The records should support communication, but they should not serve as proof of compliance without confirmation from the appropriate authority.

Ask the local inspections department, licensed pool contractor, surveyor, engineer, septic professional, electrician, or another qualified specialist to review issues within their area of responsibility. Build a Pool in North Carolina can help homeowners organize questions, but local verification remains essential before stakes are removed or construction decisions become difficult to change.
