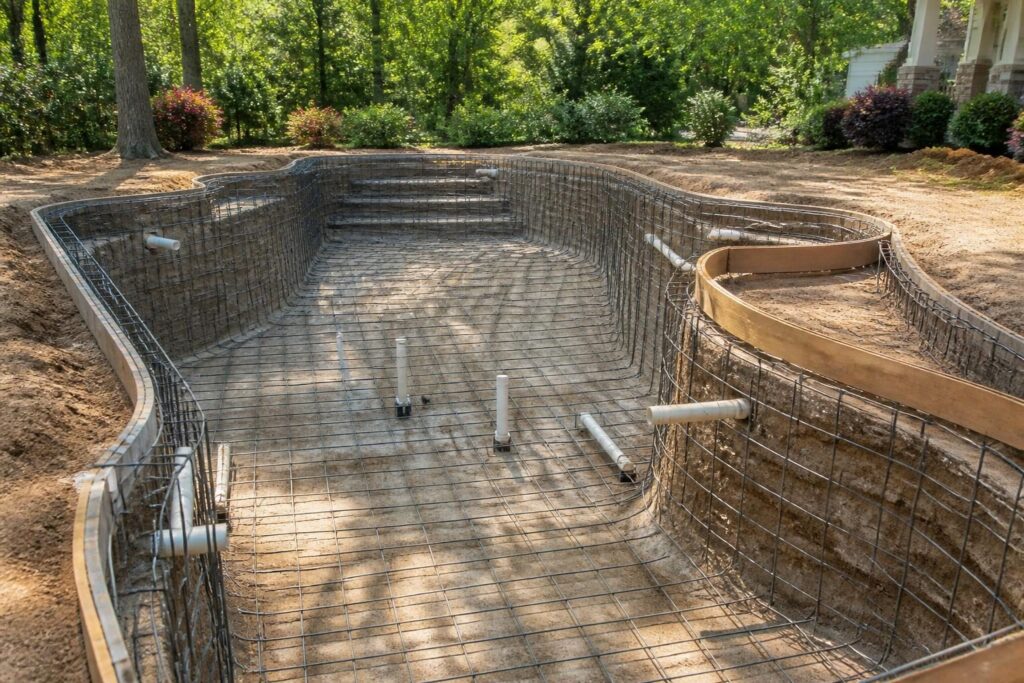

Before concrete covers the reinforcement, pool reinforcement steel inspection questions can help North Carolina homeowners understand what is ready for review. Steel reinforcement, often called rebar, helps strengthen a concrete pool shell. Its placement must match the project design and the work of qualified professionals.

This is not a substitute for an engineer’s review, a contractor’s quality-control process, or a required inspection. Instead, use the exposed stage to compare visible work with approved drawings, ask clear questions, and preserve useful records. Requirements can vary by jurisdiction, adopted code, property conditions, and project scope.

Why review the steel before concrete placement?

Once concrete covers the reinforcement, many details become difficult or impossible for a homeowner to see. Photos and notes taken beforehand can help document the construction sequence. They can also make later conversations more specific.

Steel should not be judged by appearance alone. Bar size, spacing, overlaps, supports, penetrations, and cover depend on the pool design and site conditions. A homeowner should avoid directing field changes without the appropriate professional’s approval.

Ask the project team to identify the current drawing or revision used for the installation. Keep that drawing with your project records. If the visible work differs from the plan, request an explanation and written confirmation before placement proceeds.

Pool reinforcement steel inspection questions about the layout

Start with the overall pattern. Look at the pool floor, walls, steps, benches, raised sections, and other structural areas shown in the plans. Ask the contractor to explain how the reinforcement continues through changes in shape.

• Which drawing or structural detail governs the steel installation?
• What bar sizes, spacing, layers, and lap locations does the design specify?
• How does the crew support the steel so it stays in position during concrete placement?
• Where do walls, floors, corners, beams, and raised features connect?
• Did the team record any field conditions or design changes in writing?

“Lap” means the length where one reinforcing bar overlaps another. The required overlap is design-specific. Do not assume that a visually long or short overlap is acceptable without confirmation from the responsible professional.

Pay attention to movement-prone transitions. These may include wall-to-floor corners, steps, benches, tanning ledges, spas, and raised bond beams. Ask which details address those transitions and whether any additional reinforcement appears on the current plan.

Clearances, supports, and concrete cover

Concrete cover is the concrete thickness between reinforcement and an exposed surface. It helps protect steel from the surrounding environment. The required cover can depend on the design, exposure, materials, and applicable requirements.

Homeowners should not measure a few visible spots and treat them as a complete structural inspection. Instead, ask how the crew will maintain the specified position during placement. Chairs, ties, spacers, and other supports may be part of that control.

• How will the reinforcement stay away from excavation sides and finished surfaces?
• Are supports stable on the prepared base?
• Could workers walking, placing hoses, or moving equipment displace the steel?
• How will the crew check the steel again if movement occurs during placement?
• Who will approve repairs or adjustments before concrete arrives?

Take wide photographs from several corners, then closer photographs of distinctive areas. Include a measurement reference only when it does not interfere with the work. Label images with the date, location, and drawing revision.

Coordinate plumbing, lights, and other penetrations

Pool plumbing includes pipes that move water between the pool, drains, returns, skimmers, and equipment. Other items may include light niches, sleeves, fittings, drains, and lines for water features. These components must coordinate with the reinforcement and concrete placement.

Review the visible penetrations against the plumbing layout and pool plan. Ask the contractor to identify each fitting before it becomes hidden. A small location difference can affect finish work, circulation, equipment connections, or a future repair.

• Are skimmers, returns, drains, lights, and water-feature fittings in the planned locations?
• Do pipes pass through the reinforcement without cutting or weakening required steel?
• Are fittings supported so they will not move during concrete placement?
• Did the team omit or relocate any sleeves, conduits, niches, or future-use provisions?
• Have visible plumbing changes been marked on the as-built record?

An as-built record shows how work was actually installed rather than how it was originally planned. Ask for updated drawings or marked-up plans when the installed layout differs from the approved design.

Keep plumbing photos with the construction file. Never cut, bend, remove, or reposition reinforcement or piping yourself. These pool reinforcement steel inspection questions should support coordination, not replace the contractor’s technical review.

Steps, benches, ledges, and special features

Interior features often create more complicated reinforcement patterns than a simple rectangular wall. Steps, benches, ledges, swim-outs, spas, and raised sections can change thickness, edges, corners, and plumbing locations.

Stand where you can compare the exposed steel with the approved shape. Ask the contractor to point out the reinforcement for each feature. A clear explanation can help you identify whether the visible work matches the design intent.

• Where does the main pool wall reinforcement transition into the steps or bench?
• Do the current details show feature edges, corners, and supports?
• Will the reinforcement remain clear of fittings and finish surfaces?
• Are handrail sleeves, lights, drains, or other inserts located as planned?
• What record will confirm the feature dimensions before concrete covers them?

Use the project drawings rather than relying on memory or a verbal description. You can also compare the feature plan with the separate guide to steps, benches, and ledges. The design discussion and the structural review are related, but they are not the same task.

Documents and photos to request

Good documentation identifies what the team reviewed, when it reviewed it, and which plan governed the work. It should not imply that a homeowner personally approved structural adequacy.

Before concrete placement, ask for a practical record package. The exact documents depend on the contract, jurisdiction, design, and responsible professionals. Adding these pool reinforcement steel inspection questions to your decision log can help connect photos with answers.

• Current pool, structural, plumbing, and feature drawings.
• Revision dates and written descriptions of approved changes.
• Photos of reinforcement before concrete placement.
• Records of professional or jurisdictional inspections, when applicable.
• Concrete placement date and notes about weather or site conditions.
• Names or roles of the people responsible for design review and construction supervision.
• Marked-up plans showing concealed plumbing, sleeves, fittings, and unusual details.

Save records in two places. Use a dated folder for plans and photographs, then keep a short decision log. Write questions and answers in neutral language. Avoid describing a concern as a defect unless a qualified professional has made that determination.

For broader shell documentation, see the exposed pool shell review guide. That later review does not replace the opportunity to record steel and plumbing before they disappear from view.

Inspection and approval questions in North Carolina

Ask the contractor which inspections apply before concrete placement and who schedules them. Local inspections departments may apply requirements differently. The answer can also depend on the pool type, property conditions, permit, and adopted code.

The North Carolina Office of State Fire Marshal provides official code documents and interpretations. Use that source for general reference, then confirm current requirements with the local inspections department. An official inspection is not the same as a homeowner’s visual review.

• Has the responsible professional reviewed the reinforcement and related penetrations?
• Does the local authority require an inspection before concrete placement?
• What must remain visible for that inspection?
• How will an approved correction or change be documented?
• When can placement begin after the required review?

Do not ask workers to cover questionable work simply to protect the schedule. If you see a concern, describe its location, photograph it from a safe distance, and request direction from the contractor or responsible design professional.

A calm final review before the shell is placed

Use these pool reinforcement steel inspection questions as a conversation guide:

1. What plan revision is the crew using today?
2. Which visible areas need special attention?
3. How are clearances and supports being maintained?
4. Are plumbing and feature locations coordinated with the steel?
5. Who has authority to approve a field change?
6. Which photographs and inspection records will the team provide?

For additional construction context, Build a Pool in North Carolina encourages homeowners to keep questions tied to drawings, site observations, and written project records. A careful review supports communication without replacing professional judgment.

Consult the local inspections department about current requirements. Ask the licensed pool contractor to explain construction controls. Use an engineer, surveyor, electrician, septic professional, or other qualified specialist when the issue falls within that person’s work. Do not enter an unsafe excavation or handle exposed steel and plumbing without proper direction.
